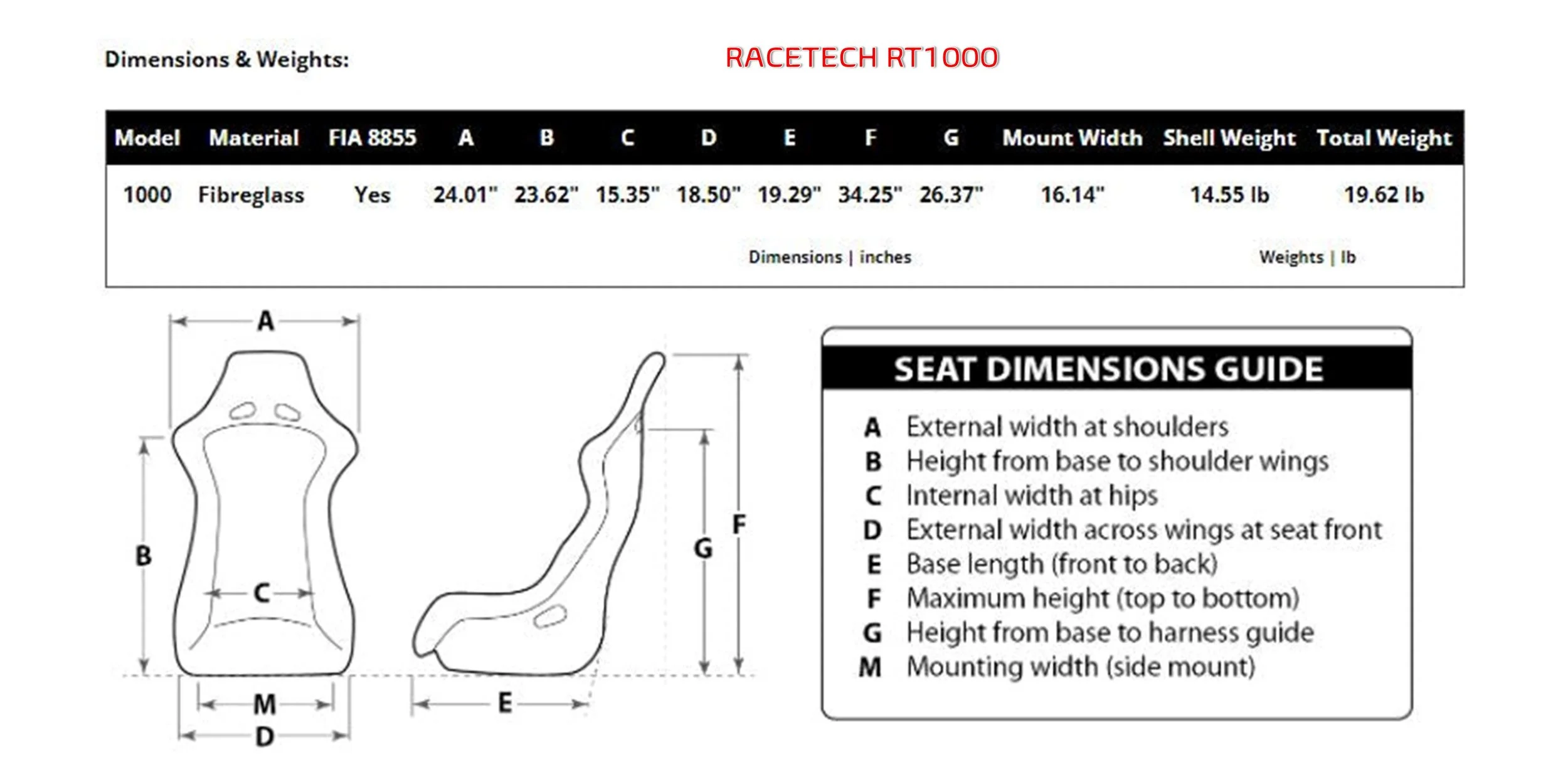

Technical drawing and specifications chart for RACTECH RT1000 seat model. Includes dimensions, weight, and mounting information for fiberglass racing seat.

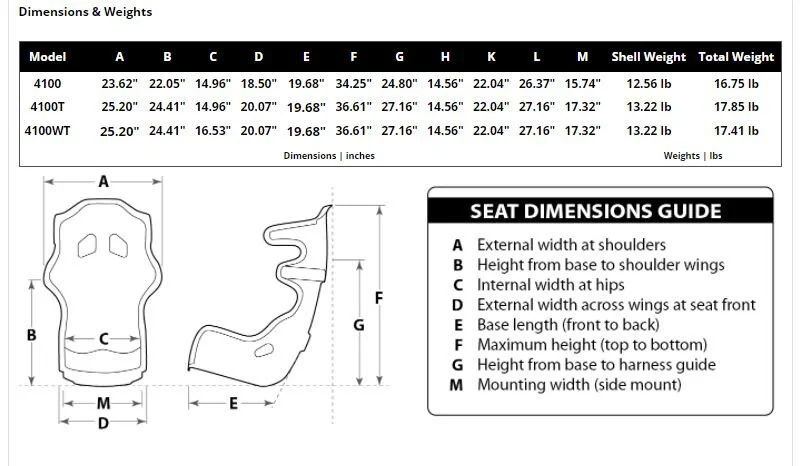

RACETECH 4100 SERIES

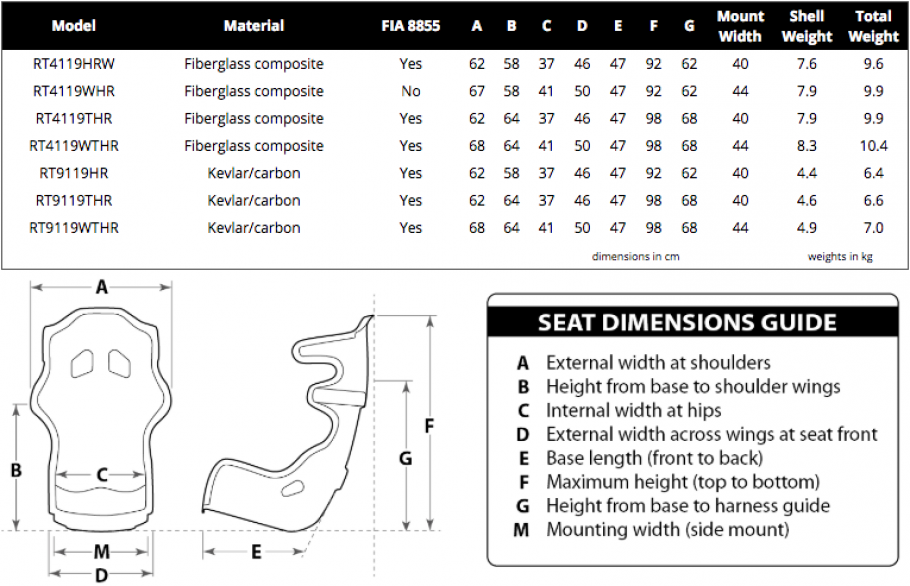

RACETECH RT4119 SERIES

RT4119 series 2.png

 RACETECH RT4119 SERIES SIZING INDICATOR

A seat sizing guide chart with a grid showing height in feet and inches on the vertical axis and waist in inches on the horizontal axis. It has color-coded areas with codes for different size fits, labeled in green and blue, for example, RT4119THR and RT9119THR. The chart is titled 'SEAT SIZING INDICATOR' and is produced by Racetech, part of the 119 & 129 series.
